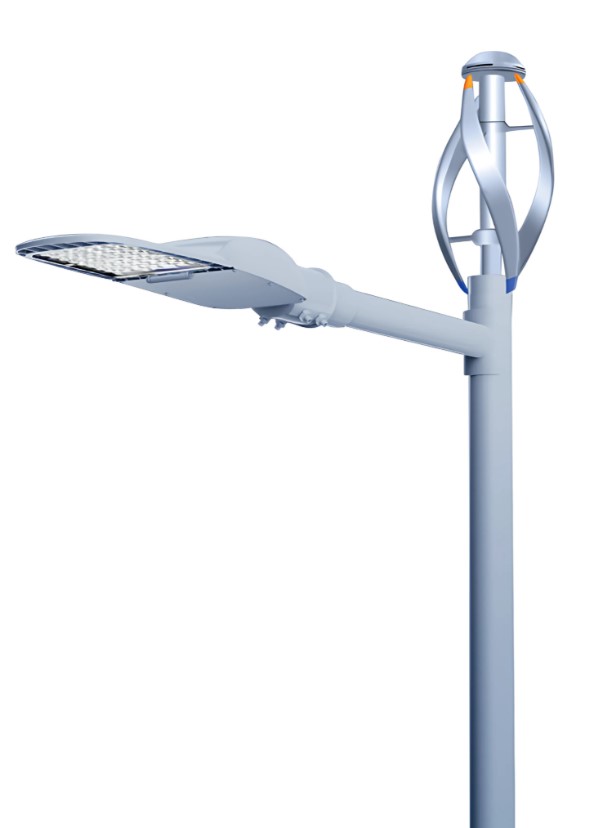

WD-UP4

WD-UP4

Feature Value
Measured Power 100 Watt
Maximum Output Power 110 Watt
Output Voltage 9V – 12V
Wing Height 50 cm
Rotor Diameter 45 cm
Initial Wind Speed 1.2 m/s
Nominal Wind Speed 10 m/s
Maximum Operating Wind Speed 45 m/s
Generator Permanent Magnet Generator
Generator Efficiency >%0.96
Turbine Weight 6 kg
Noise Level <10 dB
Operating Temperature Range -35°C to +60°C
Design Life Cycle 20 years
Guarantee Standard 2 years
Category:

Description

  • High aerodynamic efficiency in all wind conditions.

  • It works efficiently even in multi-directional, turbulent, rising, very slow and sudden winds.

  • At high wind speeds, it does not need to be stopped by an external braking system like most turbines on the market; it continues to produce maximum energy with its self-regulating speed thanks to the unique aerodynamics and progressive movement of the rotor.

  • Easy maintenance with service performed only once a year.

  • It is completely silent, with sound pressure at only <10 dBA at 10 m/s wind speed, making it ideal for urban and private applications.

  • Roof or ground mounting options for off-grid or on-grid solutions.

  • The relatively slow rotation speed of 80 to 100 rpm does not create environmental stress on the animals and reduces component fatigue. This slow rotation also allows the rotor blades to serve as an excellent advertising and sponsorship platform.
